JIS H Beams

Product Parameter:

M.S. H Beams

Grade: Q235 / SS400 / Q345B / S235JR / S275JR / S355JR / A36 / ASTM A572 GR50

SIZE (H×B×t1×t2)

(mm)

UNIT WEIGHT

(Kg/m)



SIZE (H×B×t1×t2)

(mm)

UNIT WEIGHT

(Kg/m)



SIZE (H×B×t1×t2)

(mm)

UNIT WEIGHT

(Kg/m)

100X100X6.0X8

16.9

294X200X8.0X12

56.8

440X300X11X18

124

125X125X6.5X9

23.6

294X302X12X12

85.0

446X199X8.0X12

65.1

148X100X6.0X9

20.7

298X149X5.5X8

32.0

450X200X9.0X14

74.9

150X75X5.0X7

14.0

300X150X6.5X9

36.7

482X300X11X15

115

150X150X7.0X10

31.1

300X300X10X15

94.5

488X300X11X18

129

175X90X5.0X8

18.2

300X305X15X15

106

496X199X9.0X14

77.9

175X175X7.5X11

40.3

340X250X9.0X14

78.1

500X200X10X16

88.1

194X150X6.0X9

29.9

346X174X6.0X9

41.4

582X300X12X17

137

198X99X4.5X7

17.8

350X175X7.0X11

49.4

588X300X12X20

151

200X100X5.5X8

20.9

350X350X12X19

137

594X302X14X23

175

200X200X8.0X12

49.9

390X300X10X16

107

596X199X10X15

95.1

200X204X12X12

56.7

396X199X7.0X11

56.1

600X200X11X17

106

244X175X7.0X11

44.1

400X200X8.0X13

65.4

692X300X13X20

166

248X124X5.0X8

25.1

400X400X13X21

172

700X300X13X24

185

250X125X6.0X9

29.0

400X408X21X21

197

800X300X14X26

210

250X250X9.0X14

71.8

414X405X18X28

233

900X300X16X28

243

250X255X14X14

82.2

428X407X20X35

284

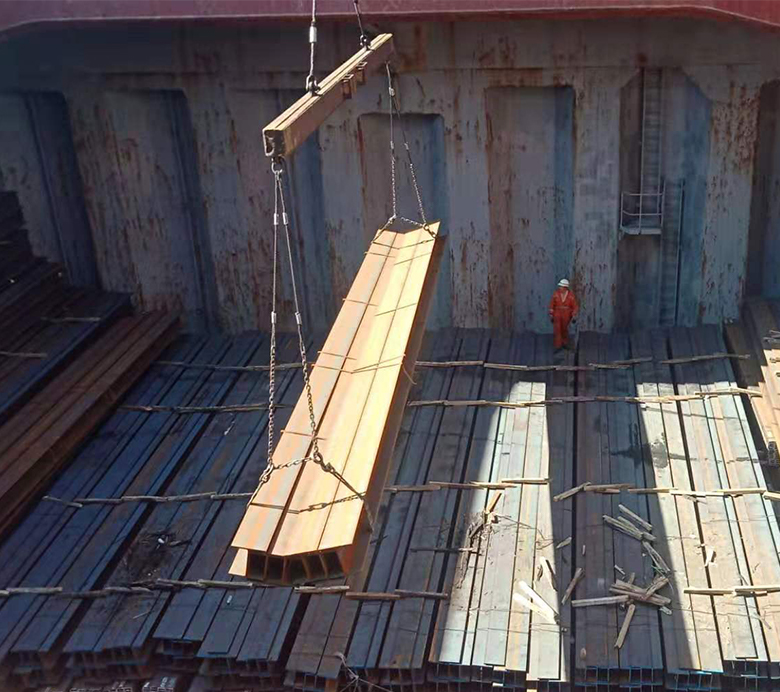

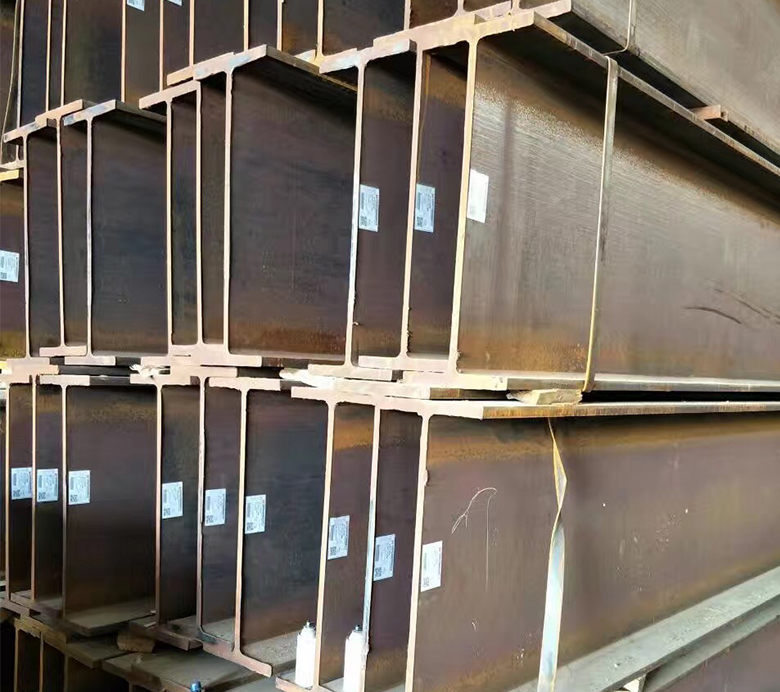

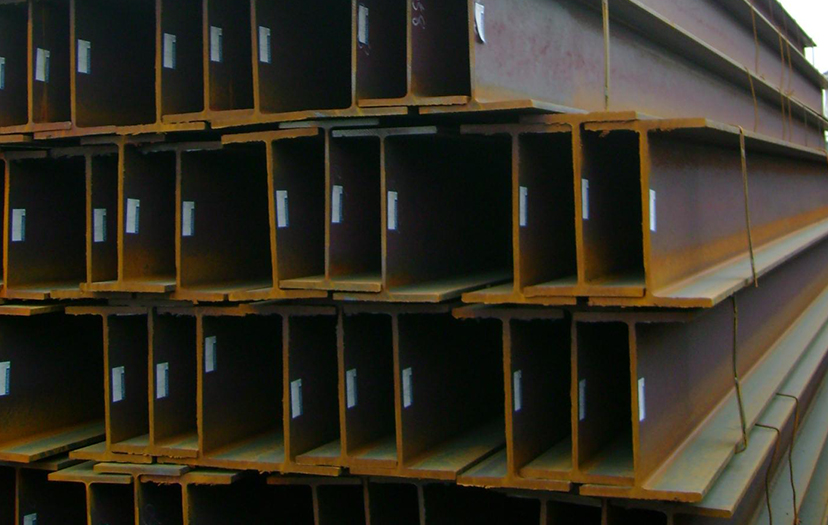

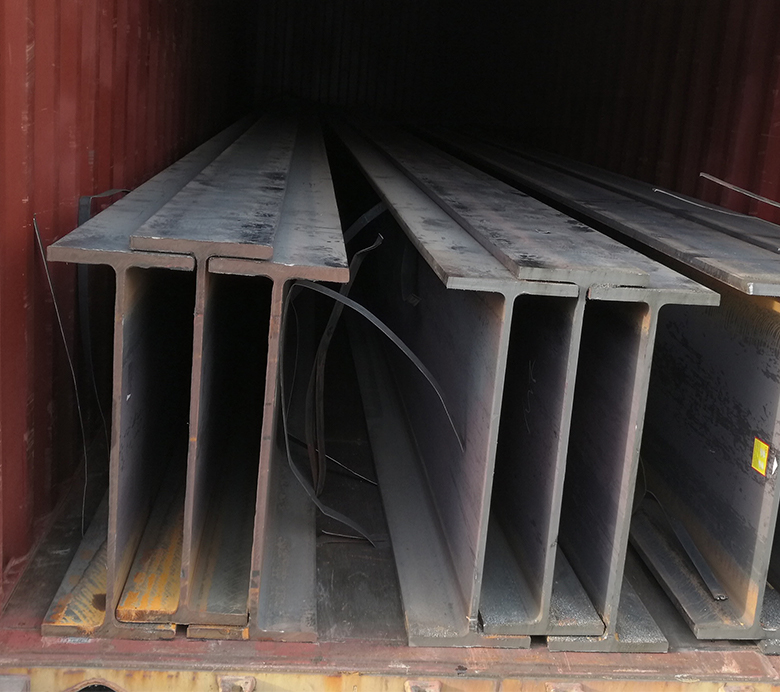

Package:
