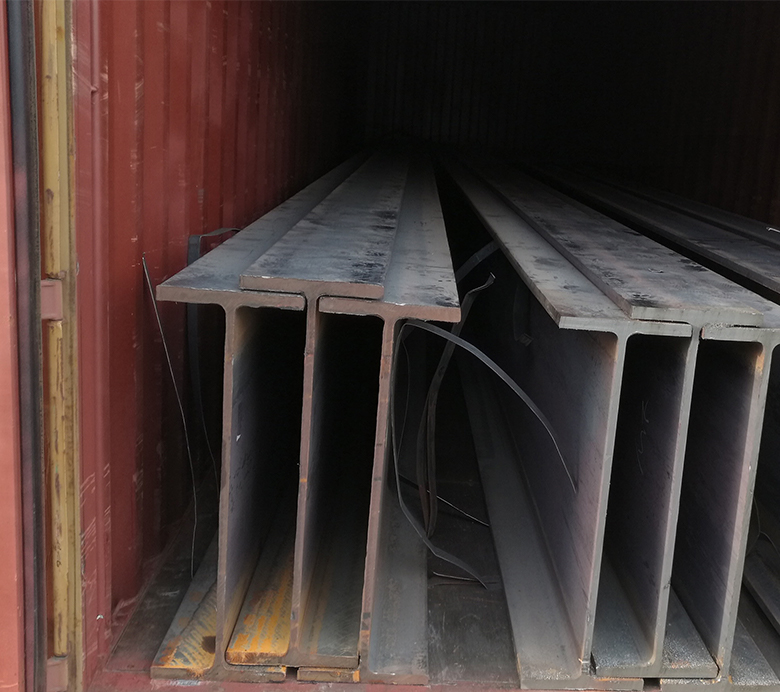

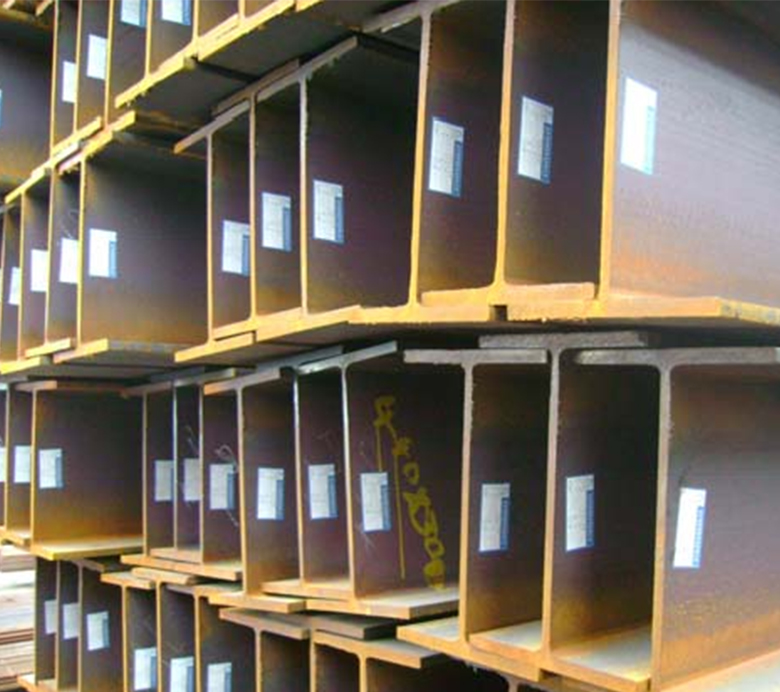

WIDE FLANGE BEAM

Grade: A36/ASTM A572 GR50

SIZE

H（D）

B(BF)

T(TW)

S(TF)

U/WEIGHT  KG/M

SERIES 1

W6 X 8.5

148

100

4.3

4.9

13

W6 x 9

150

100

4.3

5.5

13.5

W6 x 12

153

102

5.8

7.1

18

SERIES 2

W6 x 16

160

102

6.6

10.3

24

SERIES 3

W6 x 15

152

152

5.8

6.6

22.5

W6 x 20

157

153

6.6

9.3

29.8

W6 x 25

162

154

8.1

11.6

37.1

SERIES 4

W6 x 7

146.6

100

3.3

4.2

10.5

W6 x 7.5

146.61

100.08

3.56

4.45

11.25

SERIES 5

W8 X 10

200

100

4.3

5.2

15

SERIES 6

W8 X 13

203

102

5.8

6.5

19.3

W8 X 15

206

102

6.2

8

22.5

SERIES 7

W8 X14

203

133

5

6.4

21

W8 X 18

207

133

5.8

8.4

26.6

W8 X 21

210

134

6.4

10.2

31.3

SERIES 8

W8 X 31

203

203

7.2

11

46.1

W8 X 35

206

204

7.9

12.6

52

W8 X 40

210

205

9.1

14.2

59.5

W8 X 48

216

206

10.2

17.4

71

W8 X 58

222

209

13

20.6

86

W8 X 67

229

210

14.5

23.7

100

SERIES 9

W10 X 15

254

102

5.8

6.9

22.3

W10 X 17

257

102

6.1

8.4

25.3

W10 X 19

260

102

6.4

10

28.4

SERIES 10

W10 X 49

253

254

8.6

14.2

73

W10 X 54

256

255

9.4

15.6

80

W10 X 60

260

256

10.7

17.3

89

W10 X 68

264

257

11.9

19.6

101

W10 X 77

269

259

13.5

22.1

115

W10 X 88

275

261

15.4

25.1

131

W10 X 100

282

263

17.3

28.4

149

W10 X 112

289

265

19.2

31.8

167

SERIES 11

W12 X 16

305

101

5.6

6.7

23.8

W12 X 19

309

102

6

8.9

28.3

W12 X 22

313

102

6.6

10.8

32.7

SERIES 12

W12 X 26

310

165

5.8

9.7

38.7

W12 X 30

313

166

6.6

11.2

44.5

W12 X 35

317

167

7.6

13.2

52

SERIES 13

W12 X 53

306

254

8.8

14.6

79

W12 X 58

310

254

9.1

16.3

86

SERIES 14

W14 X 30

352

171

6.9

9.8

44.6

W14 X 34

355

171

7.2

11.6

51

W14 X 38

358

172

7.9

13.1

58

SERIES 15

W14 X 61

353

254

9.5

16.4

91

W14 X 68

357

255

10.5

18.3

101

W14 X 74

360

256

11.4

19.9

110

W14 X 82

363

257

13

21.7

122

SERIES 16

W14 X 145

375

394

17.3

27.7

216

W14 X 159

380

395

18.9

30.2

237

W14 X 176

387

398

21.1

33.3

262

W14 X 193

393

399

22.6

36.6

287

W14 X 211

399

401

24.9

39.6

314

SERIES 17

W18 X 50

457

190

9

14.5

74

W18 X 55

460

191

9.9

16

82

W18 X 60

463

192

10.5

17.7

89

W18 X 65

466

193

11.4

19

97

W18 X 71

469

194

12.6

20.6

106

SERIES 18

W18 X 76

463

280

10.8

17.3

113

W18 X 86

467

282

12.2

19.6

128

W18 X 97

472

283

13.6

22.1

144

W18 X 106

476

284

15

23.9

158

W18 X 119

482

286

16.6

26.9

177

W18 X 130

489

283

17

30.5

193

W18 X 143

495

285

18.5

33.5

213

W18 X 158

501

287

20.6

36.6

235

SERIES 19

W21 X 48

524

207

9

10.9

72

W21 X 55

528

209

9.5

13.3

82

W21 X 62

533

209

10.2

15.6

92

W21 X 68

537

210

10.9

17.4

101

W21 X 73

539

211

11.6

18.8

109

W21 X 83

544

212

13.1

21.2

123

W21 X 93

549

214

14.7

23.6

138

SERIES 20

W21 X101

543

312

12.7

20.3

150

W21 X111

546

313

14

22.2

165

W21 X122

551

315

15.2

24.4

182

W21 X132

554

316

16.5

26.3

196

W21 X147

560

318

18.3

29.2

219

W21 X 166

571

315

19

34.5

248

W21 X 182

577

317

21.1

37.6

272

SERIES 21

W24 X 68

603

228

10.5

14.9

101

W24 X 76

608

228

11.2

17.3

113

W24 X 84

612

229

11.9

19.6

125

W24 X 94

617

230

13.1

22.2

140

W24 X 103

623

229

14

24.9

153

SERIES 22

W27 X 84

678

253

11.7

16.3

125

W27 X 94

684

254

12.4

18.9

140

W27 X 102

688

254

13.1

21.1

152

W27 X 114

693

256

14.5

23.6

170

W27 X 129

702

254

15.5

27.9

192

SERIES 23

W30 X 148

779

266

16.5

30

220

W30 X 132

770

268

15.6

25.4

196

W30 X 124

766

267

14.9

23.6

185

W30 X 116

762

267

14.4

21.6

173

W30 X 108

758

266

13.8

19.3

161

W30 X 99

753

265

13.2

17

147

W30 X 90

750

264

11.9

15.5

134

SERIES 24

W36 X 135

903

304

15.2

20.1

201

W36 X 150

911

304

15.9

23.9

223

W36 X 160

915

305

16.5

25.9

238

W36 X 170

919

306

17.3

27.9

253

W36 X 182

923

307

18.4

30

271

W36 X 194

927

308

19.4

32

289

W36 X 210

932

309

21.1

34.5

313

W36 X232

943

308

22.1

39.9

345

SERIES 25

HP8 X 36

204

207

11.3

11.3

53

SERIES 26

HP12 X 84

312

312

17.4

17.4

125

HP12 X 74

308

310

15.5

15.4

110

HP12 X 63

303

308

13.1

13.1

93

HP12 X 53

299

306

11

11

79

SERIES 27

W10 X 30

266

148

7.6

13

44.8

W10 X 26

262

147

6.6

11.2

38.5

W10 X 22

258

146

6.1

9.1

32.7

SERIES 28

W12 X 50

310

205

9.4

16.3

74

W12 X 45

306

204

8.5

14.6

67

W12 X 40

303

203

7.5

13.1

60

SERIES 29

W12X 170

356

319

24.4

39.6

253

W12 X 152

348

317

22.1

35.6

226

W12 X 136

341

315

20.1

31.8

202

W12 X 120

333

313

18

28.1

179

W12 X 106

327

310

15.5

25.1

158

W12 X 96

323

309

14

22.9

143

W12 X 87

318

308

13.1

20.6

129

W12 X 79

314

307

11.9

18.7

117

W12 X 72

311

306

10.9

17

107

W12 X 65

308

305

9.9

15.4

97

SERIES 30

W14 X 132

372

374

16.4

26.2

196

W14 X 120

368

373

15

23.9

179

W14 X 109

364

371

13.3

21.8

162

W14 X 99

360

370

12.3

19.8

147

W14 X 90

356

369

11.2

18

134

SERIES 31

W16 X 100

431

265

14.9

25

149

W16 X 89

425

263

13.3

22.2

132

W16 X 77

420

261

11.6

19.3

114

W16 X 67

415

260

10

16.9

100

SERIES 32

W16 X 57

417

181

10.9

18.2

85

W16 X 50

413

180

9.7

16

75

W16 X 45

410

179

8.8

14.4

67

W16 X 40

407

178

7.7

12.8

60

SERIES 33

W40 X 211

1 000

300

19.1

35.9

314

W40 X 183

990

300

16.5

31

272

W40 X 167

980

300

16.5

26

249

W40 X 149

970

300

16

21.1

222

SERIES 34

W24 X 192

647

329

20.6

37.1

285

W24 X 176

641

327

19

34

262

W24 X 162

635

329

17.9

31

241

W24 X 146

328

328

16.5

27.7

217

W24 X 131

622

327

15.4

24.4

195

W24 X 117

616

325

14

21.6

174

W24 X 104

611

324

12.7

19

155
